Paradigm 8 Inch CI Home Series Round In-Ceiling Speaker - CI Home H80-R v2
| $299.99 CAD / Each |
Paradigm 8 Inch CI Home Series Round In-Ceiling Speaker - CI Home H80-R v2
CI Home H80-R v2
The Affordable Audiophile Collection. Your "Go-To" Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, trickle-down technologies, easy installation, and a bezel-free micro-perf grille with an incredibly discreet aesthetic.

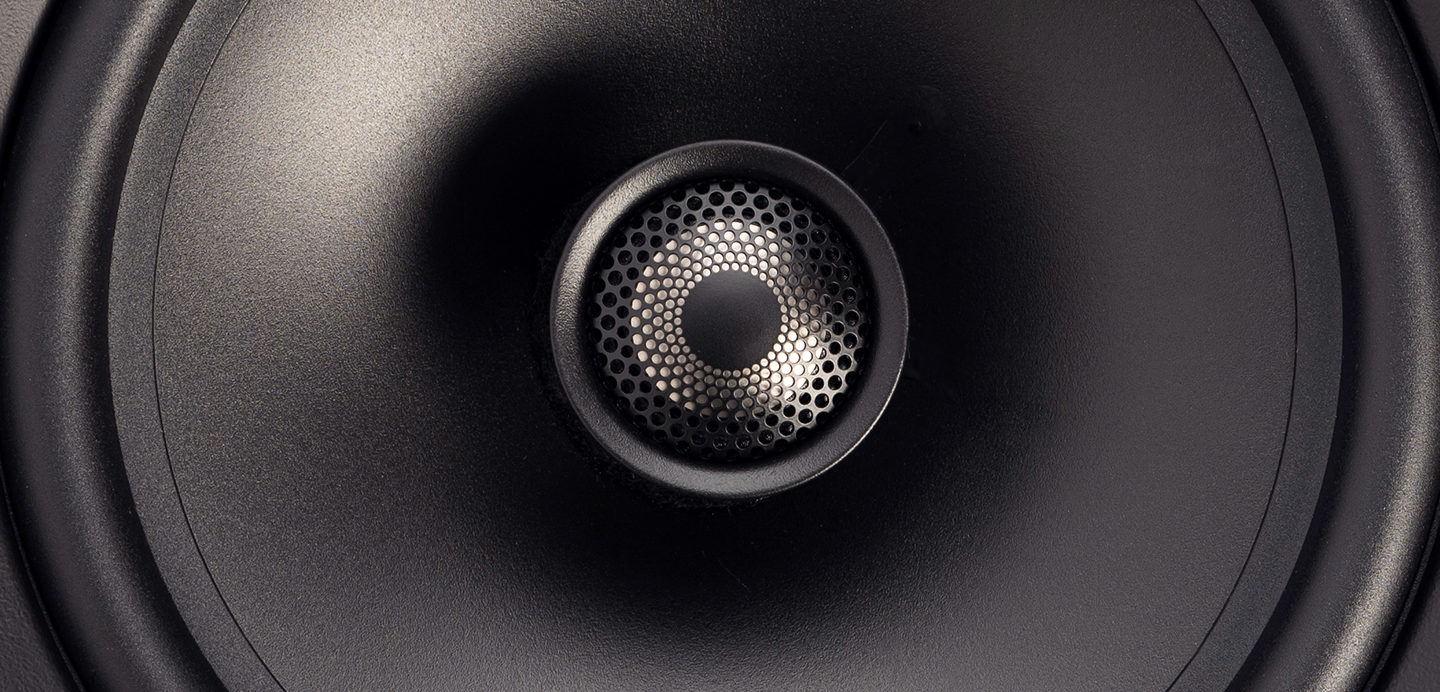

Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Dual Directional Soundfield™
30°-Angled Guided Soundfield™
Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models
Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

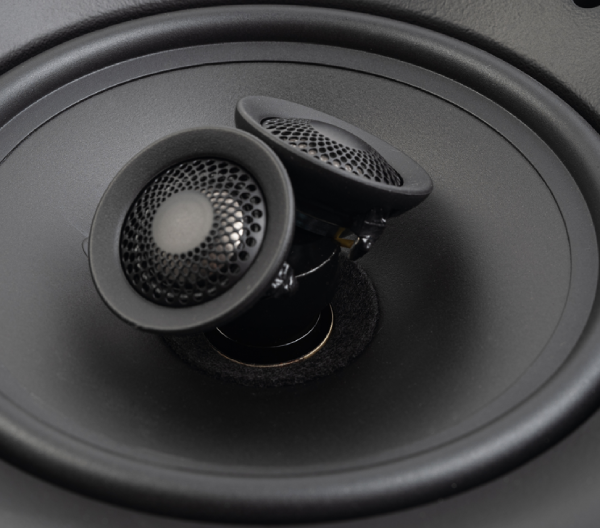

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.
Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

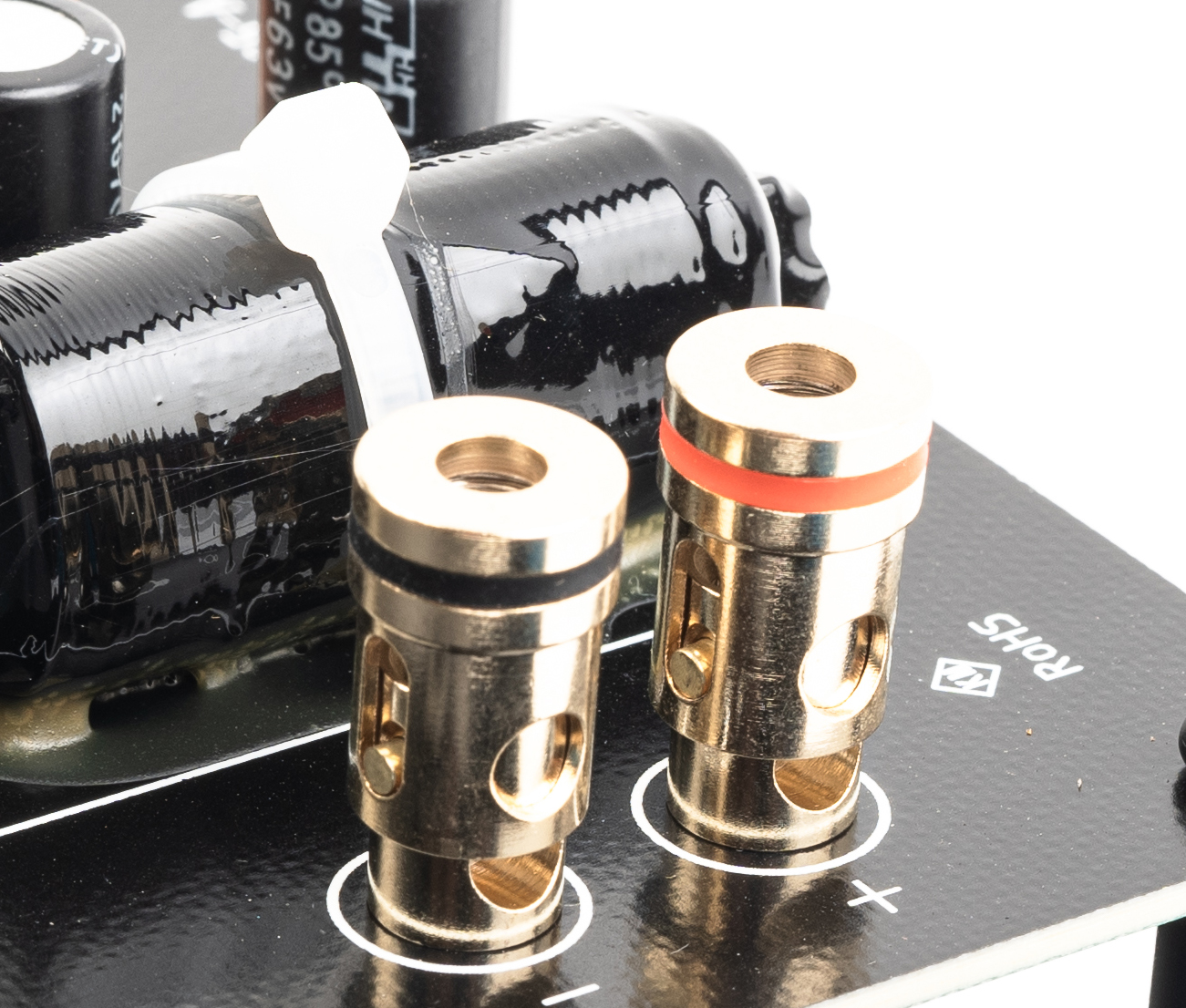

Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

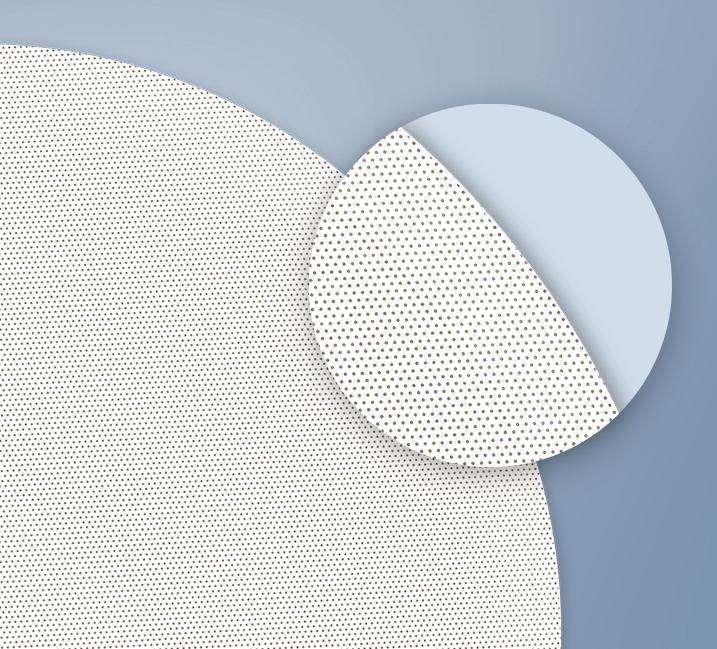

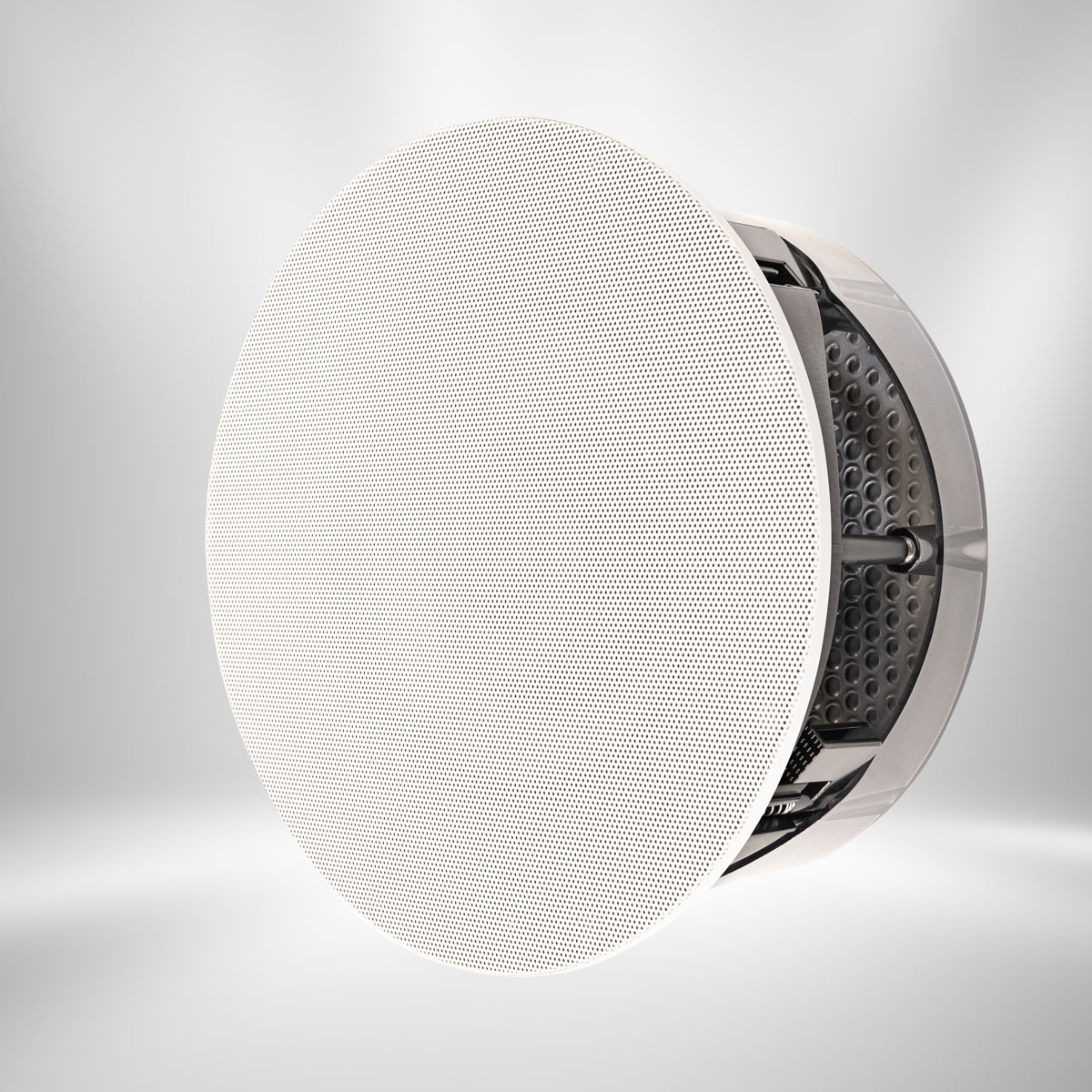

Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!
| Specifications | |
|---|---|
| DESIGN | 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps |
| CROSSOVER | 2nd-order electro- acoustic at 2.5 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2 dB from 60 Hz - 20 kHz |
| HIGH FREQUENCY DRIVER | 3/4" (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
| MID/BASS FREQUENCY DRIVER | 8" (20.3cm) Mineral-filled Polypropylene Cone |
| LOW FREQUENCY EXTENSION | 45 Hz |
| SENSITIVITY ROOM / ANECHOIC | 90 dB / 86 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2 dB from 60 Hz - 18 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15-90 W Mono |
| MAXIMUM INPUT POWER | 60 W Stereo |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 4.4 lbs (2 kg) |
| FINISHES | White, paintable grille, black speaker |
| ACCESSORIES (INCLUDED) | PB-9RN |
| CUT-OUT DIMENSIONS | 9-3/8" (23.8cm) dia. |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) | 3-3/8" (8.6cm) |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | 10-3/8" (diameter) x 4" (depth) (26.5cm x 10.1cm) |
